Aug 14 2012

The heart of your irrigation system: the irrigation valve.

If the controller is the brains of your system the valves are the heart. They control the flow of water through the lines. They are very simple in both principle and design.

This is an example of a typical valve. Details may vary but execution is the same.

Valves have water both above and below the diaphragm. The upper chamber pressure is greater than the lower due to the combination of spring pressure and trapped water. They also have an air space under the solenoid with a bleed hole that is opened when the solenoid plunger is retracted (zone turned on).

Opening this hole lowers the pressure above the diaphragm, the water below forces the diaphragm up and water flows through. Most valves will not open with less than 15 to 20 pounds per square inch of pressure. This is only a concern with extremely low pressure; usually on gravity feed water tanks.

Picking a good valve is simple: stay with a name brand. After that you have few decisions to make. Most people use 1” valves. Simple reasons are they are the most economical, readily available, both new and parts, and provide the flow most residential and small commercial designs need. Even if your design calls for a ¾’ valve use 1”. It doesn’t cost more and if you make changes or expansions in the future you won’t be restricted by the smaller size. A 1” valve will allow up to 25% more flow than a ¾” valve.

The next choice is flow control. Flow control is separate knob or screw on top of the valve and allows you to regulate the water going through the valve. In most cases flow control is not necessary but it does have advantages. If a valve sticks open, one of the more common valve failures, the flow control allows you force the valve closed. If your water pressure is low, either because of supply problems or overlapping valve operations, partially closing the flow control will help the valve close faster and more reliably. It’s cheap insurance to have.

Valves fail in consistent ways. It may not close completely. This could be due to debris, the most common reason, or worn diaphragms. Check out FILTRATION for how to prevent debris. Diaphragms do wear and age, generally resulting in a tear in the diaphragm. Just replace. For a very short video on how to do a repair look at VALVE REPAIR. Valve bodies rarely fail unless suffering freeze damage or shovel hit.

Solenoids will fail over time or the connections to the control box could have become corroded. Check the connections; make sure they are clean. For a simple way to test the solenoid:

Steps in Creating a Portable Valve Activator.

Take three 9-Volt Batteries
Connect in a series
Connnect one valve wire to the negative pole
Then connect the other wire to the positive pole to activate the valve
If the solenoid is functioning properly, you should hear a “click”

For a more involved but very easy and thorough way to test the solenoid and all wiring look at USING A MULTIMETER.

Aug 7 2012

You filter your coffee, you filter air. Really should filter your irrigation water.

The water going to your irrigation system is probably not as clean as you think. Even if you have municipal water from the best city supply in the country (Austin, TX, Des Moines, IA, Sioux Falls, S.D.) that water has to get to you through old pipes. Many cities still have cast iron pipes as their main lines, some dating back over 100 years. Most homes built before the 1960s have galvanized piping. Pipes tend to fail from the inside, losing minute rust and other particles into the water. Add in the occasional sand particles that get in the water when pipes or pumps break and are fixed, plus the minor debris caused by cutting and repairing pipes, and there is a whole flotilla of little particles floating in your water.

At this point you are probably thinking “Wait a minute! I drink that stuff! All that garbage goes into me!” Yes, it does. However, your body is better adapted to handling it than your sprinkler system. Besides, didn’t your doctor always tell you iron was good for you? Back to the pipes…

All of these particles go into your irrigation system and accumulate in valves, sprays and emitters. This causes decreased performance and a steady increase in maintenance. It also costs you money in ways you might not expect. The thing to do is stop it before it happens.

A common problem with irrigation valves is failing to close completely. This leads to water seepage through the spray heads, wasting a great deal of water. Many times the problem is just grit or debris keeping the diaphragm from seating.

What you didn’t know it cost you: paying to fix something that is not broken. When you call a service tech (me) out for a leaking valve chances are good the first thing I will do is replace the valve. Generally I won’t even bother to see if it just needs cleaning. This is not done to save time. It is far quicker and easier to open and clean a valve than it is to cut the pipes and replace the valve.

I do it because people tend to be unhappy paying for service. People get really unhappy when charged for a service call and I look at them and say, “Nah, I didn’t have to replace anything. I just wiped it off with a rag. It’s fine. Please pay me for one hour labor.” People like seeing things replaced. New is always better, right?

The debris also accumulates in your spray nozzles, causing pattern changes, reduced coverage distance and eventually complete blockage. These are easy to clean: tooth pick, tooth brush and running water. A tech will never clean them. It does take longer to clean these than to replace them.

The best thing to do is avoid these problems all together. Install a T-style filter.

The Vu-Flow screen filters keep out sand and debris. The body is clear so you can instantly see when the filter needs purging or cleaning. To purge, just open the valve on the bottom. The trapped dirty water flows out. If the filter needs washing unscrew the body, remove the screen and clean. You don’t need to dry it off, it’ll get wet anyway.

Various screen sizes are available for different debris sizes.

Sediment In Water	Use To Protect	Type To Use: (Mesh; Micron; Inches)
Coarse Sand; Shell	Sprinkler heads	30 mesh; 533 micron; .021″
Medium Sand/Grit Pipe scale; Well Cuttings	Solenoid Valves Gear Drive Sprinkler Domestic Water	60 mesh; 254 micron; .010″ 60 mesh; 254 micron; .010″ 100 mesh; 152 micron; .006″
Fine Sand/Silt	Poultry drinkers Household well water Drip Irrigation Fogger Sprayer	140 mesh; 104 micron; .004″ 140 mesh; 104 micron; .004″ 250 mesh; 61 micron; .0024″ 250 mesh; 61 micron; .0024″

T-filters are easy to install and maintain. Filtering your water extends the life of your valves and nozzles. Maintenance becomes less frequent, saving time and money. All in all, a relatively minor investment with pretty good return.

Aug 3 2012

Silly you. You thought ½” tubing measured ½”.

Half inch tubing is literally the backbone of many drip irrigation systems. It is by far the most popular size used. The only problem is half inch tubing isn’t half inch. It’s close! Closer than ‘hand grenade’ close. More like ‘electric razor’ close.

Piping has specific dimensions. Steel, iron, copper, pvc all have set standards set by ASTM International. This means that the steel pipe you buy in Maine will fit the fittings you buy in Nebraska and connect to the existing pipe in Alaska.

Plastic tubing? No, no real standards. The size can vary from manufacturer to manufacturer or even within the same manufacturer. The term ½” is known as the nominal size, or the industry trade description of the product. As they say in the diet commercials, your results may vary. A lot, actually.

Irrigation 1/2-inch polyethylene tubing is available in different configurations:

1/2-inch – .570″ ID x .670″ OD 1/2-inch – .580″ ID x .700″ OD
1/2-inch – .600″ ID x .700″ OD 1/2-inch – .620″ ID x .710″ OD

Why do you care? Honestly, the sizes are so close they won’t have much effect on water flow, especially the two biggest. You care because fittings don’t always fit. It’s easy to buy a ½” fitting that won’t fit a ½” tube.

It is important when building a drip system to check the internal diameter of the tubing against the size of the fittings you need. While always buying the same brand of tubing and fittings help it is not a guarantee of fit. The two fittings in the picture are from the same company. They are not interchangeable. If you put the .520” in a .600 ID tube and clamp down tight enough it should hold. You can’t put the .600” in a .520” tube without deforming the tube.

Before you buy your system take a moment and verify dimensions. Look at the barb fittings and you see the specs are given for each piece. All you need to do is match them to your tubing.

Fortunately, ½” tubing seems to be the only product with this problem. The ¼”, ¾” and 1” are all consistent in sizing.

Jul 24 2012

SPF = Some People Fry SPM = Some People Melt

Couple of safety issues to go over today. We want to keep our customers healthy and buying stuff.

Some people fry.

No sunburn. Sunburn = bad. Too much sunburn = cancer = really bad.

I’m not going to pretend to be an expert on sunscreen lotions. I do, however, know how to get a bad sunburn, if that helps. In researching this post I came across the expected advice and two more things I didn’t know. So use sunscreen, stay in shade, cover your skin, etc.

First thing I didn’t know: SPF probably doesn’t mean exactly what you think and it’s not really mathematical. The really high SPF ratings don’t do what you would expect. Because he sums it up so eloquently I’ll quote Dr. James Spencer as reported on the very useful WebMD site.

“SPF is not a consumer-friendly number,” says Florida dermatologist and American Academy of Dermatology (AAD) spokesman James M. Spencer, MD. “It is logical for someone to think that an SPF of 30 is twice as good as an SPF of 15, and so on, but that is not how it works.”

According to Spencer, an SPF 15 product blocks about 94% of UVB rays, an SPF 30 product blocks 97% of UVB rays, and an SPF 45 product blocks about 98% of rays.”

And now, the best technical summation I have ever read.

“After that, it just gets silly,” he says. (webmd.com: sunscreens)

The other thing I learned is that, while SPF 45 is not three times as good at SPF 15, many doctors still recommend it and higher but not because of the minor increase in efficiency. It seems most people do not apply sunscreen properly, usually applying far too thin a layer. By recommending higher SPF they hope to compensate for the fact we don’t read instructions.

Oh, and wear a hat.

Some people melt.

If you don’t count holes, snakes, saws, shovels, picks, trenchers, mud, sun, mosquitoes and PVC cutters then there are very few hazards in irrigation work. So let’s forget those and look at primer and cement.

Working with PVC primer and cement is easy and quick. With any minor precautions at all it’s pretty safe. Even with no precautions it is hard to hurt yourself unless you try. Unfortunately, people seem to try all the time.

You should wear gloves. The primer not only stinks but it will help you find every cut and scrape on your hand and set them on fire. Do you really want that stuff going in an open wound? It also tends to dry out your skin and you lose that ‘satiny smooth’ touch you’ve worked so hard for. Then you get the great fun of telling everyone why your hand is purple. The cement can take a day or two to come off and you look like you have Rigelian Fever.

The cement is really a solvent. It loves to melt plastic. Get some on your new eyeglasses and you’ll need another pair. Get some on your contacts? Not only will your eye scream in pain but your contact is shot.

Keep cement and primer out of your eyes or your kids will hear those words they aren’t supposed to say.

Now the serious part. Primer stinks. Badly. Primer vapors are bad for you. People will pour it on rags, hold it up to their nose and breathe deeply for a dumb and dangerous high. Dangerous and you end up with a purple nose telling everyone you are less than smart. Make sure you use primer in a well-ventilated area.

Most situations are low risk: the outdoor repair, the quick under sink fix, etc. The danger lies in lots of exposure in confined areas. You will stop smelling it. Your brain will think the nose is lying to it cuz’ nothing can smell that bad that long. The brain stops registering the odor. You can stand there breathing in all the vapors without the built in alarm system your body started with. This is known as ‘not good.’

In 20+ years of working with primer and cement I’ve never known anyone to be harmed during routine use. I have seen people working in small closed rooms get dizzy from the fumes. It’s neither fun nor funny.

Have lots of ventilation when gluing pipe. Outdoors is best.

The bright spot is if you are at risk of sunburn doing repairs it’s not likely you are in a small closed room. Keep your hat on, use sunscreen.

Jul 20 2012

How we picked our team. Irrigation supplies, major league

Ever wonder why a company picks certain products to carry? Sometimes it is obvious: if you are going to sell groceries you need to sell Kraft products. Sometimes it is not, like the Tabasco flavored tequila now on the market. Don’t try that one. Seriously.

Choosing the product lines for Sprinkler Warehouse involved both the obvious and the lesser known. The major requirement of each brand was that it was reliable, did what it said it would do and would show our pride in our company.

The obvious. You cannot discuss irrigation without involving Hunter and Rain Bird. Both of these companies are dedicated to irrigation and produce a full line of products. It would be extremely difficult to think of an irrigation requirement that they cannot fulfill.

There are a few others.

The one you’ve heard of but didn’t think about for irrigation.

The Toro Company. Ever wonder why it’s named “Toro”? I did. Seems it was started in 1916 to build tractors for Bull Tractors. Fits right in there, doesn’t it? Toro is most famous for its commercial and residential lawn and tractor equipment, snow blowers and utility vehicles. Not as well known is the fact Toro has been in the irrigation business since 1962. They produce a full complement of irrigation supplies and have one of the most innovative controllers on the market, the battery operated and waterproof DDCWP. They also produce the highly efficient Precision Series spray nozzle.

Some you may not have heard of but need to.

The K-Rain Corporation. It’s not often you find a company started by a rocket scientist. This one is. It was founded 1974 by Carl Kah, a former manager of the U.S. Air Force’s reusable rocket engine program. According to Carl, “Thespace program set an example for all of us in business to follow. There is always something that needs to be improved.” K-Rain keeps improving, having over 90 patents so far, including one for the Indexing valve, a Kah invention that reduces the need for five valves down to one. Their continuing quest for improvement enables them to bring quality products to market with prices noticeably lower than many of their competitors.

The DIG Corporation. DIG was founded in 1981 to do one thing and one thing only: provide efficient, cost effective low volume irrigation systems. “Low volume” is commonly known as drip or micro irrigation. That’s all they do and they are very good at it. They have anything you can think of for a drip system, whether it’s in your garden, your flower pots, under turf or in plant nurseries. They drip, spray, fog, mist and stream. They also provide the LEIT controllers. Powered by ambient light, LEIT controllers are much more sensitive than solar power, giving you more options for controller locations.

Cyber Rain Inc. No other irrigation controller out there is as versatile, flexible, high-tech and just flat cool as the Cyber Rain Cloud controller. Need shade, order up a cloud, no problem! (sorry, couldn’t resist.) The Cyber-Rain Cloud controller does everything you can ask for and you control it from anywhere. Whip out your Android, iPhone or Blackberry phone, check your system performance, make changes and, instead of Zone 1 or Zone 4 you see a picture of the area. Why remember zone numbers when you can see what it covers? It checks the weather and automatically adjusts your irrigation schedule to match and, since Cyber-Rain uses the internet, weather updates are always free! Now folks, that’s pretty hard to beat.

Every member of our team was drafted after careful consideration. We’re glad to have them and look forward to the upcoming series/bowl.

Jun 26 2012

Backflow = upchuck? Eeeewww…

Most people know they need a backflow for their irrigation system. They just don’t know why. I’m going to work this backwards. First I’ll show what can happen if a backflow is missing or broken. Then I’ll tell you how they work and why you want one for your system.

From the West Virginia Department of Health and Human Resources: “One of the most highly publicized cases of a backflow incident occurred in 1969 at Holy Cross University. The football season was canceled due to a large outbreak of infectious hepatitis among the team members. It was determined that backflow through an unprotected lawn sprinkler system at the practice football field caused the epidemic. Children carrying the hepatitis virus routinely played in puddles around the sprinkler heads. Fire fighting demands in the vicinity caused negative pressures at the sprinkler heads backsiphoning the contaminated water into the drinking water supply to the field.

One of the most famous cases of backflow occurred in California. A laborer had been using an aspirator attached to a garden hose to spray a driveway with weed-killer containing arsenic. At sometime during his work, the water pressure reversed. The man then disconnected the hose and unwittingly drank from the hose bib. Arsenic in the waterline killed him.”

Thirsty yet? Try this from the Environmental Protection Agency: “In 1991, an atmospheric vacuum breaker valve intended to protect a cross-connection between an irrigation system and the potable supply malfunctioned, allowing backflow of irrigation water into the public water system. The water system, located in Michigan, was contaminated with nematodes, rust, and debris.

In 1981, chlordane and heptachlor were backsiphoned through a garden hose submerged in a termite exterminator’s tank truck in Pennsylvania. An undisclosed number of illnesses occurred, and 75 apartment units were affected.”

THE BASICS If you lose water pressure to your house, for whatever reason, the water in the house will flow out to the main line. Because pressure is now reversed, going from house to main line, it creates a siphon effect and will pull anything in the sprinkler system and in the puddles around the sprinkler system with it. If your garden hose was on at the same time it becomes a siphon hose. Now all the fertilizer, insecticide, animal waste and many other things you don’t want are pulled into the drinking water.

GARDEN HOSE Notice the two involving garden hoses? How many of us drink from a garden hose when working outside on a hot summer day? Ever use that same hose to put out pesticides or fertilizer? Have a backflow preventer on the hose bib? Cheap, cheap protection.

I think it is important at this time to note that our very talented graphics department has absolutely nothing to do with the illustrations in this article. I stole their work and added my own touches. I get the blame.

IRRIGATION SYSTEM Same principal. Have another bad drawing. A backflow works by shutting down the irrigation water line when you lose water pressure. The simplest works just like a stopper in your bathtub: a plug falls down, blocks the line. They get far more complicated, depending on application.

Don’t listen to your neighbor, me, anyone else on what type of backflow you should get. Ask your city or county or your water provider. In my area a pressure vacuum breaker is plenty. Two miles away a new jurisdiction starts and they insist on double-checks. Always verify local code requirements first.

To find out the different types of backflows look at the backflow section on sprinklerwarehouse.com. To learn more about how they work check out backflows in Sprinkler School.

And stop drinking from your garden hose until it’s protected. Lemonade sounds better anyway.

Mar 13 2012

Watering Trees

Trees clear the air, provide homes to wildlife, offer shade for picnics, and, without trees, there would be no tree houses or tire swings. They also add value to your dwelling, increasing the visual appeal and adding to the livability of your home. Trees are a vital part of our lives, directly and indirectly.

The drought that hit the United States has damaged or killed millions of trees. Texas has been particularly hard hit but the damage extends from New Mexico to Florida. By one estimate, Texas has lost approximately 500 million trees, with other states suffering various levels of damage. Unfortunately, the drought is predicted to continue through 2012.

The question then becomes: what is the best way to water a tree? Ideally, the method chosen will provide the greatest amount of benefit to the tree while using the least amount of water. The first thing to know is where to water your tree. Watering directly at the trunk is not only a waste of water but can promote some diseases. There are a few simple guidelines to follow for established trees.

First, the water needs to get to the roots. Watering too little, or just surface watering, will cause shallow roots, weakening the tree and leading to more drought damage. Deep watering to about 10” to 18” inches below the surface is best, depending on tree size. The older, more mature tree the deeper you should go.

For most trees, irrigate within the drip line. The exception is evergreens, as they tend to grow up and not out. For these, imagine the drip line to extend a couple of feet outside the physical drip line.

This Drip Line is basically the furthest most extent of the leaves, as shown in the picture of the tree. Inside this area is where the plant is growing smaller roots known as Feeder Rootlets. These absorb moisture and nutrients from the soil.

The objective is to water slowly, dispersing the flow of water to get the water deep down to the trees roots.

Don’t dig holes in the ground in an effort to water deeply. This exposes the roots to air and dries out roots even more. Watering at ground level with a sprinkler system does help. However, running your sprinkler system long enough to provide sufficient water for trees would result in a great waste of water in other areas and increase chances for water runoff.

There are a number of ways to provide water at the proper rate and in the proper place, saving both the tree and water. The first, and simplest, is through the use of soaker hoses. Simply place rings within the watering area and turn the system on. The water goes where it is needed with little waste. The disadvantage is the labor involved in placing the hose, turning it on and off, removal and replacement for mowing and raking, and the possibility of damage to the hoses, requiring replacement. While efficient in water placement this method does require a bit of effort.

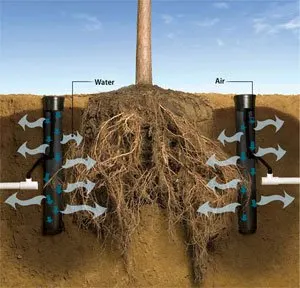

A more efficient method is the use of deep watering systems. One system involves using tree watering stakes. These range in lengths from 14” to 36”, connect to your watering system, either drip or garden hose, and put the water where it can be best utilized. This way the roots are sure to receive the water without worry of wind or run off.

Finally, there is a root watering system that attaches directly to your irrigation system. These provide the needed water and have minimal visual impact on the yard, as they are installed at grade. Since they are attached to your irrigation system you have the ability to set the watering schedule as needed without the frequent labor needed with soaker hoses or garden hose attachment.

Whichever system you choose, the key to tree survival is proper watering. Too much, too little or watering in the wrong place can cause further harm to the tree. Proper watering can extend the life, health and beauty of the tree for years to come.

For more information about anything involving irrigation, please visit us at www.SprinklerWarehouse.com.

Jul 26 2010

Drip Tubing Basics and Drip Irrigation System Basics

What is Drip Tubing?

Drip Tubing

Drip tubing is used in the delivery of water directly to the roots of plants. Specifically, drip tubing is made from polyethylene and has emitters that are placed at intervals along the tube that correspond with the placement of each plant. This ensures that water is delivered directly to each plant’s root zone. Irrigating in this manner is not only very precise and efficient, but it also conserves water because of the low flow-rate that is required.

In arid locations, drip irrigation is an essential method of maximizing water usage and has been a standard for centuries. There is even evidence that ancient civilizations used clay pots that were buried in the ground as a primitive method of drip irrigation. The pots would be buried near plants and filled with water. Over time, water would slowly seep from the pots and into the soil. In this manner, each plant received a constant and direct source of water.

What Does Drip Tubing Do?

Drip irrigation, via the use of quality polyethylene drip tubing, is both an economical and efficient way to irrigate most forms of plant life. Due to the fact that this method of irrigation has an efficiency rate of over 90%, this is especially true in areas where water is scarce. Because of the low flow-rate and direct application to the roots of the plant, using drip tubing for irrigation also reduces evaporation and runoff.

Drip System

Drip irrigation is scalable and can be used for both commercial and residential applications. Drip irrigation also limits disease because the tubing is delivering water directly to the root zone of a plant. By minimizing water contact on the stems, leaves and fruit of a plant, waterborne disease is virtually eliminated. Using drip tubing for irrigation also keeps the rows between plants dry. This allows for easier access to the plant and reduces weed growth. Other benefits include less leaching of nutrients and water under the root zone and increased success over rough terrain.

When Should You Use Drip Tubing?

Drip tubing for irrigation purposes can provide benefits to nearly any type of agricultural endeavor. If you are a homeowner, drip irrigation provides an efficient way to water a multitude of different plant life from perennials in a landscaped flower garden to a backyard garden filled with fruits and vegetables. Drip irrigation is especially useful in situations where water usage may be limited or in locations where water is scarce.

Because of its flexibility, drip tubing can also be used for irrigating irregularly shaped or narrow areas. Drip tubing can be shaped to the contours of the rows of plants or landscaped areas.

Drip irrigation is also very useful during times of drought. In many cases, because of its efficiency, it may not be subject to water restrictions that are imposed during these times. Using drip tubing for irrigation is also considered a very “green” irrigation solution and as such it is an excellent way to conserve and even recycle water.

The Nuts and Bolts of Drip Tubing and Drip Irrigation

Now that you’ve decided to embark on a journey that involves drip irrigation, it’s a good idea to take some time to learn a bit about what you’ll need in order to develop your drip irrigation system.

What Sizes of Polyethylene Drip Tubing Are Available?

If you are a homeowner who is developing your own drip irrigation system, it is important to understand the differences in the sizes of drip tubing. It’s especially easy to become confused about the differences in 1/2-inch drip tubing, and this can lead to problems with buying the correct size of fittings.

Drip tubing and polyethylene tubing both come in various styles and sizes ranging from 1/8-inch to 1.5-inches or even larger. There are differences between the OD (Outside Diameter) and ID (Inside Diameter). These differences are shown with this list of the most common sizes of drip tubing.

Polyethylene Tubing:
1/8-inch – .125″ ID x .187″ OD
1/4-inch – .170″ ID x .250″ OD
3/8-inch – .375″ ID x .500″ OD

1/2-inch polyethylene tubing is available in three different configurations:

1/2-inch – .520″ ID x .620″ OD
1/2-inch – .600″ ID x .700″ OD
1/2-inch – .615″ ID x .710″ OD

3/4-inch – .820″ ID x .940″ OD
1-inch – 1.060″ ID x 1.200″ OD

Drip Tubing:
1/4-inch – (5mm) with .170″ ID x .240″ OD

1/2-inch drip tubing is available in two different configurations:

1/2″ – .550″ ID x .640″ OD
1/2″ – .570″ ID x .670″ OD

Remember, with 1/2″-inch tubing that you need to have the and ID and OD that corresponds correctly with the size of fittings that you will use. If these sizes do not match precisely, there can be a wide variety of problems like leaks, blow-outs or stripped threads on fittings.

Drip tubing is normally sold in lengths of 100, 500 or 1,000 feet. It is black in color and has a high resistance to sunlight. In normal sunlight situations, drip tubing will last for about 30-years.

Emitter Tubing

What Types of Drip Tubing are Available?

There are several different types of drip tubing that are available for a drip irrigation system.

Emitter tubing – For most drip irrigation systems, emitter tubing is the standard. This tubing allows for spot placement of water. In the case of factory-made emitter tubing, emitters are placed at even distances along the length of the tube. This type of tubing is a perfect choice for rows of evenly spaced plants. In custom systems designed for a landscaped area, emitters are manually placed along the tube to correspond with the placement of various plants.

1/4" Distribution Tubing

1/2-inch distribution tubing – This tubing is generally connected to the main water supply and brings the water to the 1/4-inch distribution tubing, soaker tubing or emitter tubing.

1/4-inch distribution tubing – This tubing connects the 1/2-inch tubing to various types of emitters such as misters, emitters and sprinklers.

Soaker hoses or tubing – These types of emitters are porous hoses that can be connected directly to an outside faucet, rain barrel or garden hose. This type of hose can be laid around your different plants and water will seep from the walls of the hose and into the ground around it. The difference between soaker hose and drip line is that the delivery of water is much less accurate. You could compare a soaker hose to sweating because the water comes out along the entire length of the hose.

Soaker tape or drip tape – This emitter is similar to a soaker hose. It is made of either porous material or has hundreds of tiny holes along its entire length. The main difference is that drip tape is much thinner and in many cases will only last for one season. This tape can be used above or below ground and is very good for delivering water to wider areas that might need it. One example is within an area that has dense foliage.

Micro tubing is another useful component for irrigation systems. This type of tubing generally comes in 1/8” and 1/4” sizes and it can be used as the main and sub lateral tubing for a drip irrigation system. It is also used to connect emitters. Micro tubing can generally handle up to 15 gph.

How Do I Determine What Type of Drip Tubing to Use?

A simple answer to this question is that it will vary depending on what your needs are. If the intended use of the drip irrigation system is for rows of crops in a garden or trees in an orchard, factory-made tubing with its evenly spaced emitters is the perfect choice. If, however, you are designing a system for a landscaped yard that has plants at various intervals throughout the entire yard, emitter tubing that requires manual placement of emitters is the correct choice.

If you decide to landscape your yard in a different manner each year, soaker tubing may be a good choice since it is something that requires annual replacement. The size of your irrigation zones will also factor into this equation. One of the most important things you should do is draw out a plan then use string to determine the proper lengths of the tubing you’ll need.

Above Ground Control Valve Control Zone Kit

What Components Are Used in a Drip Irrigation System?

In a nutshell, there are several essential components in a drip irrigation system. Each system will require a main waterline, control valves, pressure reducer, backflow prevention, pressure regulator, filter, various tubingadapters and fittings, air vents, drip tubing, emitters, filters and an end cap or flush valve.

Main Water Line – This is the beginning of a system. In the case of a landscaped area around a residence, the main line is usually alongside the house and extends from the foundation or outside wall of the home. A main water line can also be run underground to a central point within your irrigation layout.

In-Ground Control Valve Control Zone Kit

Control Valve – This component controls the flow of the water from the main water line or throughout the various areas of the irrigation system. Control valves may be operated manually or, with a bit more expense, may be automatic. Depending on the type of system that is installed, there may be one or more control valves.

Pressure Reducer or Regulator – Since many systems operate with maximum efficiency at lower water pressures, a pressure regulator may be required to help lower the water pressure coming from the main water line outside of a home.

Backflow Preventer

Backflow Prevention – Emitters sit directly on top of soil or beneath soil. If water that has been emitted into the soil seeps back into the drip line and up to the main line, it may very well contaminate your entire water supply. In order to prevent water contamination in your main water supply, it is of the utmost importance that your drip irrigation system has a backflow suppressor.

Filters – A filter with a 150-mesh or 200-mesh screen will help prevent the buildup of different minerals and particulates in the emitters. Filters will also protect the valves on your drip irrigation system.

Drip Tubing or Dripline – This is the tubing that has emitters installed on it. If you are using factory-preinstalled emitters, this tubing will have the emitters placed at the same intervals along the length of the tubing. Manually installed emitters can be placed at varying intervals.

Fittings & Adapters

If your irrigation needs are focused on plants that are spaced at regular intervals, dripline is an easy choice. This type of drip tubing comes in multiple lengths from 50-feet to 1,000-feet. In most cases driplines can be found that have emitters placed at 6-inch, 9-inch, 12-inch, 18-inch, 24-inch, 36-inch or 48-inch intervals. In some cases, depending upon the type of application, driplines may come with even larger intervals.

Air Vent – In order to keep air out of the emitters during the times that the system is shut down, an air vent should be installed at the drip tube’s highest point.

Drip Tube Fittings and Adapters – This equipment includes tees, couplings, adapters and ells. These are the components that are used to connect the drip tubes to each other and to control valves or the main waterline. It is important to note that the fittings should be the correct size for the tubing you use. In many cases, using the incorrect size fittings will result in a blowout.

End Caps and Flush Valves – In order to keep the water from just flowing out of the end of the drip tubing, it is necessary to have a flush valve or end cap. A flush valve is simply a valve that is placed at the end of the drip tubing. It is kept in the off position until the tubing needs to be flushed (generally once per year). An end cap is exactly what it sounds like: a cap that is screwed onto the end of the drip tubing.

Emitters

Emitters – Within the list of equipment needed for a drip irrigation system, we’ve saved emitters for last. Emitters are one of the most important components of the drip irrigation system. Emitters are basically small plastic valves that are installed along the length of the drip tube. The sole purpose of an emitter is to keep a continuous and uniform flow of water near the root zone of the plant.

There are two primary categories of emitters: pressure compensating emitters and turbulent flow emitters. Pressure compensating emitters are used in situations where there is a disparity in elevation of greater than five-feet. Turbulent flow emitters, also known as tortuous-path emitters, are used when the irrigation area is level.

Keep in mind that all emitters provide some type of pressure compensation. However, a pressure compensation emitter, by definition, will keep the water’s flow-rate constant regardless of the water pressure. For instance, a pressure compensation emitter should keep water flowing at the same rate whether it is at a pressure of 1.0 bar (15 PSI) or 3.0 bars (45 PSI).

Strictly speaking, the main benefit of using a pressure-compensating emitter is that if you have an area that is hilly (with an elevation of over 5-feet) then pressure-compensating emitters will maintain the water’s flow-rate throughout the system. One thing to always be aware of is that, as a general rule, pressure-compensating emitters should not be used when your water pressure is very low.

As you can imagine, the flow-rate of a pre-installed emitter is one of the most important parts of the drip irrigation equation. Emitter flow-rates vary quite a lot, however, the most common flow-rates that are used for home irrigation systems are as follows:

2.0 liters per hour (1/2 gallon per hour)
4.0 liters per hour (1 gallon per hour)
8.0 liters per hour (2 gallons per hour)

When selecting the type of emitter, one item to be mindful of is the type of soil you have. The purpose of drip irrigation is to supply water directly to the root zone of a plant. In order to do this, the water needs to be absorbed by the soil immediately or it will evaporate or there will be run-off. If your flow-rate is too high, you’ll end up with excess water around the plant that either runs off or evaporates. Specifically, the higher the density of your soil, the slower your flow-rate needs to be. Soil that is high in clay, for instance, is very dense and tightly packed and absorption is very slow. From a practical standpoint, if you have loose, sandy soil, you should consider emitters that have higher flow-rates because the absorption rate will be much faster.

Rules of the Rows

When constructing your drip irrigation system, there area few things to consider. You might consider these to be the rules of the rows. The first thing to consider is the length of your mainlines and lateral lines.

Regardless of anything else you might learn about drip irrigation, the number one rule you have to consider is that the laws of physics always apply. This becomes incredibly important when considering the length of your mainlines and lateral lines. As a rule, the overall length of both cannot exceed 120 meters (400 feet).

Typical sizes for mainline and lateral lines can vary, but the following guidelines are relatively standard across all drip irrigation systems.

| Flow Range in GPM | Mainline Pipe Size | Lateral Line Size |
——————————————————————————-
| 0-3 | 1/2” | 1/2” |
——————————————————————————-
| 3-6 | 3/4” | 1/2” |
——————————————————————————-
| 6-10 | 1” | 3/4” |
——————————————————————————-
| 10-20 | 1 1/4” | 1” |
——————————————————————————-
| 20-30 | 1 1/2” | 1 1/4” |
——————————————————————————-

Drip tube length is another consideration to factor into the overall design of the irrigation system. The overall length of the drip tube cannot be more than 60 meters (200 feet) from the water’s point of entry to the end of each tube.

When designing a system, the designer needs to take several things into consideration. Total coverage area, types of plants to be irrigated and type of soil are the major requirements have been determined you can select the proper hardware to ensure proper flow-rates.

How to Install a Basic Drip Irrigation or Sprinkler System

Installation of a basic drip irrigation or micro sprinkler system is relatively simple. The first step is to design your layout based on what you’ll be using the system for. Once you’ve acquired the proper equipment, you can begin assembling the system. What follows assumes that you have the correct tools and equipment and are familiar with it.

Step 1 – Attach the vacuum breaker to the pressure regulator. This will keep water from backwashing into your home water supply.

Step 2 – Connect your filter to the pressure regulator then attach the hose swivel to the opening on the side of the filter. Connect everything to your hose bib.

Step 3 – Lay your tubing out according to your design. Be sure that emitters are positioned so that they are close to the root zone of each plant.

Step 4 – Place ground stakes at intervals along your drip tubing to secure it into place. The hook at the top of the stake should fit over your drip tube.

Step 5 – Once all of your tubing has been laid out, install the correct sized pipe fittings and make sure to tighten them then attach an end clamp, end cap or flush valve at the end of your line.

Step 6 – Test the system. If you see problems within your system, this will be the time to fix them. Following are some simple troubleshooting techniques that can be used to fix a drip irrigation system.

Obviously, this is a very basic installation, but the same principles apply to larger jobs. Specifically, though, it’s a matter of careful planning and attention to detail.

Troubleshooting Your Drip Tubing Irrigation System

Q. No water is coming from an emitter, what should I do?
A. Clean the emitter or replace it depending on how clogged it is.

Q. The tubing or emitter has blown off, what’s wrong with my system?
A. Tube or emitter blow off is caused by too much pressure in the system. The easiest remedy is to add a pressure regulator to the line that is causing the problems.

Q. There are leaks between my fittings or between pieces of tubing. How do I fix this?
A. First, check the connections and ensure that they are tight. If you’re dealing with a small leak in the pipe, you can use a dresser coupling to fix the leak. For larger leaks, you may need to cut out the damaged section of the line, insert an additional length of drip line and use fittings to seal the connections.

Drip irrigation is a tried and true method for maximizing the efficiency of delivering water to your plants. Once you’ve planned, installed and used your drip irrigation system, you’ll be on your way to more effective and cost-saving irrigation.

Where to Buy Drip Irrigation Parts and Supplies

For more information about drip irrigation system repair, troubleshooting drip irrigation systems, drip irrigation controllers, drip irrigation pipe or emitters, or to purchase new drip irrigation parts or supplies, go to www.SprinklerWarehouse.com.

Sprinkler Warehouse

Irrigation & Lawn Sprinkler System Answers!

Category Archives: Drip Irrigation
