Pipe Dreams? Or PVC Pipe dreams? There is a difference.


If you don’t know the difference we can’t help you here. This is not that kind of a blog. If you have nightmares about figuring out which pipe to use for your irrigation then we can help.

PVC stands for polyvinyl chloride. PVC is easier to say. PVC pipe accounts for about two thirds of the water distribution market, including drinking, irrigation and waste. So far the material has been found to be inert, meaning it doesn’t absorb or release harmful chemicals. Unless you burn it. Don’t sniff burning PVC.  It’s no fun, painful and the smoke can be hazardous.

The most common question we get is a two-parter: what size pipe should I use and what kind: Schedule 40 or Class 200? Knowing the differences can help you create an efficient system.

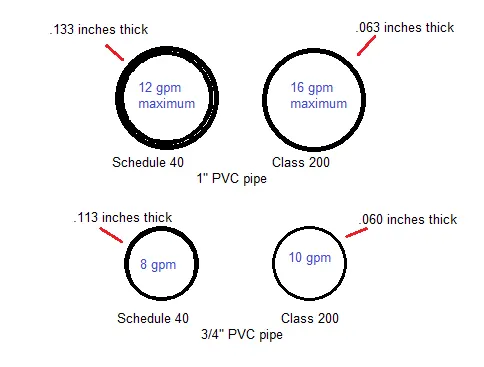

Remember the old “a picture is worth a thousand words” quote? I’ll give you a picture now and you can decide if you want to skip the other 476 words.

Let’s talk about Schedule 40 pipe first. It is the simplest. Schedule XX designates the wall thickness at a certain size. For example, a 1” pipe in schedule 40 has a wall thickness of .133”; schedule 80 has a wall thickness of .179”. Higher schedule = thicker wall.

You will care about this later. It does get more interesting, hopefully.

“Class” pipe is different and the original definitions go back to steam boilers. We’ll skip ahead. Class 200 pipe, the most common class pipe used in irrigation, is rated for 200 pounds per square inch pressure (psi) and has a wall thickness of .063” for a 1” pipe. Notice that is a lot thinner than schedule 40. This is about to become very important. Schedule 40, in comparison, is rated for 450 psi. This is not as important.

The average irrigation system is designed for about 30 to 50 psi. Plenty of safety factor built in. It is not, however, as much as you think. A poorly designed system can experience water hammer and a 60psi line can experience frequent surges of pressure up to about 170 psi. Still within safety range.

Now we can get into the “why do we care” part.  Everything in irrigation ties into gallons per minute. Your spray head puts out a certain number of gallons per minute (gpm). Your design revolves around it. If you have 13 gpm you can put six 2 gpm heads on that zone. Or four 2gpm and four 1 gpm. (Never design to the absolute max gpm.)

Look at the cross section of ¾” and 1” pipe both in schedule 40 and class 200. Check the comparative flows in the picture above. This difference in flow can make a big difference in how you design your zones. There are friction loss/flow charts available to help you.

So what do you choose? The rule of thumb is to use schedule 40 for the main line. Run it from the water meter, through the backflow and to the valves. Then use class 200 for the laterals, or after the valves.

Why schedule 40 when it allows fewer gallons per minute? Because the thick wall makes it tougher, harder to break. Your main is under constant pressure; the laterals are under pressure only when they are active and it is an open-end system. Before real pressure can build in your laterals the water is shooting out the sprays, keeping pressure down. Schedule 40 is more resistant to shovels (its sworn enemy), tent stakes, car tires, kids, dogs and other puncture/crack pressures.

There are exceptions to everything. There are situations where an entire system should be done in class 200 pipes. Same for schedule 40.  Now that you know the difference you can make a more informed decision and start dreaming about better things, like a 1973 Norton Commando.

Backflow = upchuck? Eeeewww…


Most people know they need a backflow for their irrigation system. They just don’t know why. I’m going to work this backwards. First I’ll show what can happen if a backflow is missing or broken. Then I’ll tell you how they work and why you want one for your system.

From the West Virginia Department of Health and Human Resources: “One of the most highly publicized cases of a backflow incident occurred in 1969 at Holy Cross University. The football season was canceled due to a large outbreak of infectious hepatitis among the team members. It was determined that backflow through an unprotected lawn sprinkler system at the practice football field caused the epidemic. Children carrying the hepatitis virus routinely played in puddles around the sprinkler heads. Fire fighting demands in the vicinity caused negative pressures at the sprinkler heads backsiphoning the contaminated water into the drinking water supply to the field.

One of the most famous cases of backflow occurred in California. A laborer had been using an aspirator attached to a garden hose to spray a driveway with weed-killer containing arsenic. At sometime during his work, the water pressure reversed. The man then disconnected the hose and unwittingly drank from the hose bib. Arsenic in the waterline killed him.”

Thirsty yet? Try this from the Environmental Protection Agency: “In 1991, an atmospheric vacuum breaker valve intended to protect a cross-connection between an irrigation system and the potable supply malfunctioned, allowing backflow of irrigation water into the public water system. The water system, located in Michigan, was contaminated with nematodes, rust, and debris.

In 1981, chlordane and heptachlor were backsiphoned through a garden hose submerged in a termite exterminator’s tank truck in Pennsylvania. An undisclosed number of illnesses occurred, and 75 apartment units were affected.”

THE BASICS If you lose water pressure to your house, for whatever reason, the water in the house will flow out to the main line. Because pressure is now reversed, going from house to main line, it creates a siphon effect and will pull anything in the sprinkler system and in the puddles around the sprinkler system with it. If your garden hose was on at the same time it becomes a siphon hose. Now all the fertilizer, insecticide, animal waste and many other things you don’t want are pulled into the drinking water.

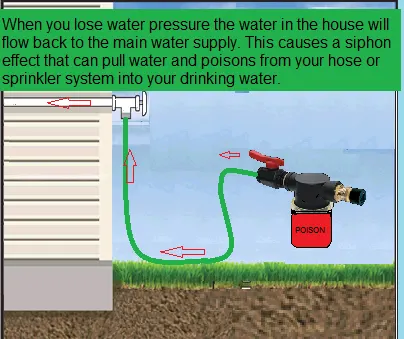

GARDEN HOSE Notice the two involving garden hoses? How many of us drink from a garden hose when working outside on a hot summer day? Ever use that same hose to put out pesticides or fertilizer? Have a backflow preventer on the hose bib? Cheap, cheap protection.

I think it is important at this time to note that our very talented graphics department has absolutely nothing to do with the illustrations in this article. I stole their work and added my own touches.  I get the blame.

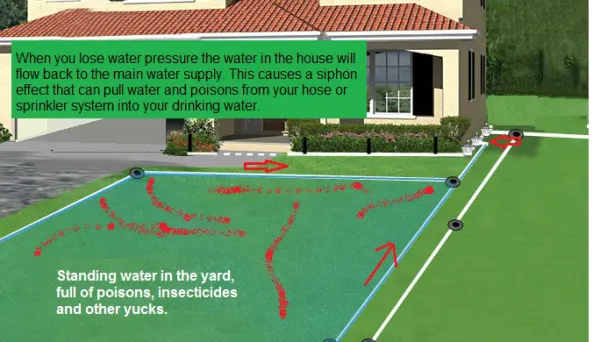

IRRIGATION SYSTEM Same principal. Have another bad drawing. A backflow works by shutting down the irrigation water line when you lose water pressure. The simplest works just like a stopper in your bathtub: a plug falls down, blocks the line. They get far more complicated, depending on application.
