Protect your sprinkler system by winterizing your investment


Winterization is the only way to protect your sprinkler system during the deep plunge in temperatures during the winter.

If you can’t afford a professional to come out and winterize your system, we have got your back.

Here is what you need to do DIY a pneumatic blow out:

  • Connect the air compressor. With a large air compressor ( 50 cubic feet per minute min), connect the air compressor to the backflow preventer riser on the downstream side. Make sure the compressor has a pressure regulator valve with an accurate gauge.
  • Open valves one at a time. Always turn on your valves one by one, (preferably) using the system controller. If your yard is uneven, work in sequence from the highest zone downward. Otherwise move through the zones one at a time in order from last to first.
  • Anti-siphon above ground valves. You will need to connect the compressor hose to the downstream part of the valve risers.
  • Turn on the air compressor. Gradually and very slowly increase the pressure without letting it exceed 50 psi.
  • Blow the water out. The first zone will generally take the longest. As soon as the water has been effectively blown out, turn off the air supply to that zone.
  • Move on to the next valve. Turn off the valve that you just worked on and proceed to the next one following the same steps. WARNING: Never shut all valves while the compressor is running, it will likely result in damaged parts.
  • Blow out main line section. If your irrigation system has a mainline section that is upstream from the backflow preventer, hook up your air compressor to the blow out fitting near the sprinkler system shut off valve; blow out the water through the backflow preventer riser.
  • Set controller for winter. Set the automatic controller to “rain mode” or disconnect power from it. Place threaded caps over the anti-siphon valve fittings, backflow preventer risers – over anything that might allow pests or garbage to get in.

Your done!

When should you be mowing your grass?


We answer questions about best watering times frequently here are Sprinkler Warehouse, but we are often asked questions outside of irrigation, especially dealing with grass. One of the most popular questions is, “When is the best time of day to mow the lawn?”

Lets face it. If we are doing our job and helping you to water properly, your lawn should be growing healthy and strong!

So, we did a little research and consulted with some friends who are experts in the lawn health department and came up with a few guidelines to share with you.

mow-grass-infographic1

Fixing dead spots, brown spots and burned grass


Brown patches and uneven plant growth can be caused by a number of factors. But in this article, we are going to focus specifically on sprinkler systems as the source of the problem.

Several common problems are

  • incorrect sprinkler head height,
  • clogged nozzles,
  • or wrong spacing of heads.

Below are some tips to get your green grass back.

burn-grass

Incorrect sprinkler head height

Incorrect sprinkler head height is one of the most common problems leading to brown spots and poor growth. Heads installed at incorrect heights can also lead to damage to the sprinkler system.

Sprinkler heads that have been installed too low aren’t able to rise above the ground or turf level, or the level of the plants directly around them. This prevents the water from spraying properly and often leads to coverage gaps and flooding around the sprinkler head. Additionally, sprinkler heads that are too low are more likely to have retraction problems and mechanism failures. This is caused by dirt entering the internals of the sprinkler head.

Heads that have been placed too high are a tripping hazard and are a risk that could damaging lawn mowers or other landscaping equipment. The easiest way to correct this is to dig out around the head, disconnect it, and reconnect it using funny pipe or a swing joint which can be positioned to exactly the right height.

Another common cause of incorrect sprinkler head height is the natural growth of surrounding plants. A sprinkler head that was installed correctly near a shrub may need to be adjusted as the plant grows. Sprinkler heads watering ground cover plants will also need adjustment.

Over time, ground levels can raise or lower (soil is washed away with rain and flooding, built up with decomposing leaf matter, grass clippings, etc.), which can cause a sprinkler head to be too high or too low. Either way, the best solution is to dig it out, remove it, and reconnect it using a swing joint or funny pipe. All sprinkler systems should be checked periodically to verify that the heads are still at the correct level.

Clogged nozzles

Clogged sprinkler nozzles are caused by dirt or debris working their way into the sprinkler head. This can prevent the sprinkler head from spraying properly causing gaps in the spray pattern, which will lead to brown patches. The first step in diagnosing brown spots is to observe the sprinkler while it is running. You’ll be able to see if overgrown plants are blocking the sprinkler, the head is broken, or the spray pattern is being internally disrupted.

Note: Don’t try to remove a nozzle by prying at it with a screwdriver. Both rotor and spray nozzles are easy to remove but must be removed carefully to avoid damage.

Wrong spacing of heads

Even if sprinklers appear to be spraying evenly over an area, there may be gaps in the coverage. When planning and installing sprinklers, it is important to lay out the heads with “head to head” coverage. This means that the spray from one sprinkler head should reach the next closest sprinkler heads, and vice versa. Head to head coverage creates optimum watering overlap and helps compensate for spray pattern imperfections.

Uneven growth or brown patches in your lawn may be an indication of damaged or clogged heads, or improper installation or placement. It is important to check all these possibilities and repair or correct any problem areas to maintain a healthy lawn. Often, poor coverage will not manifest itself until severe hot, dry weather conditions prevent your lawn from receiving supplemental water through rainfall. New plantings can also reveal problem areas, as they have not yet developed mature root systems.

Additional watering times or hand watering can help, but the best solution is to adjust your sprinkler system properly and clean or repair any damaged or clogged heads. A well-maintained, properly installed and adjusted sprinkler system will keep your landscape well-watered, beautiful and healthy.

Useful Links:

#WetPet $50 photo contest! Easy way to get a Sprinkler Warehouse coupon code


Dear #IrrigationNation,

We are looking for your best #WetPet pictures to share and enjoy here on the Sprinkler Warehouse blog and on the SprinklerWarehouse.com website. Whether it’s your dog, cat bird, horse or squirrel, we want to see them! In turn, we will send you a coupon code to use on your next order.*

Plus, the person who sends in our favorite photo will get a $50 gift card to use on Sprinklerwarehouse.com!

Go to sprinklerwarehouse.com/photo to submit your winning photo.

Sincerely,

-SW Team

Because photographs must be verified for ownership, copyright infringement and general appropriateness, coupon codes will be sent out the following business day.

Promotion ends June 30, 2015.

wet-pet-banner-4-BLOG

Get that new car smell from your lawn with a new perfume system for your sprinklers


It is not uncommon nowadays for a person to apply perfume or cologne before going out on a date or to work. You buy fragrance clips and hangers for your car. You even buy candles or outlet plug-ins for your home. So it makes sense that you would want your yard to smell just as good as the other parts of your life.

Sprinklerwarehouse.com announced today the release of a new fragrance delivery medium for your yard using your yards existing sprinklers system. The kit can be used with underground sprinklers or hose end sprinklers alike. Using a patented, proprietary injection system, the fragrance is evenly applied across the yard and is controlled using an “on-demand” smart phone app. The app lets the homeowner control how much fragrance is dispensed and for how long. You can even switch between different scents with optional kit (sold separately).

Perhaps the  most exciting news about the scent-system is that it can use your own favorite perfumes and colognes! However, if the thought of spraying your $300 bottle of Creed or Le Labo onto your yard is more than you had in mind, Sprinkler Warehouse offers a range of less expensive scents that can be directly purchased including freshly cut grass, sun-dried clothes, campfire, tropical island seabreeze, or even new car scent.

The kit retails for $399.99 and can be installed in under an hour with tools most homeowners have on hand.

A discount code found here will save you 20%!

This $3 part can save you thousands after a bitterly cold winter night


Tired of blowing out your sprinkler system each year in preparation for cold. You wait and wait for the day when the temps dip below freezing to validate the hard work you did to purge every last drop of H2O from the myriad of pipes and elbows and rotor heads.

If you live in a part of the country where freezing pipes are a primary concern, then there is one simple device you can install in just minutes that will always be watching over your pipes and protecting them from damage year round

What is the name of this oh-so-valuable part? Its called a lateral drain!

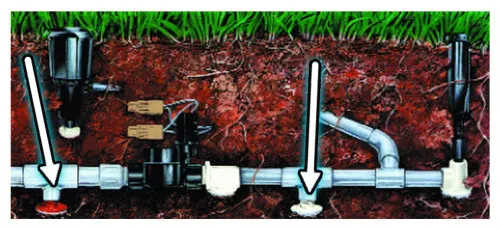

Lateral drains (sometimes referred to as freeze drains) are a very simple device that do not require any electricity, maintenance or attention on your part to work. Simply install them and forget about them! Each drain works using a one way valve that stays open  when there is not pressure in the system, and it closes itself whenever there is water in the pipes. The primary benefit of the automatic drain is that it will allow the water that remains in your pipes after shutting off the sprinklers to have an easy path out of the pipe.

lateral-drains

Broken pipes occur when the water inside your pipes reaches a freezing temperature and expands as it turns to ice. Without anywhere to go when it expands the ice will force it’s way out of the pipe either by splitting the pipe or breaking a valve or rotor or worst of all a backflow preventer!

You can purchase automatic drains in a variety of styles, but each uses the same primary design to allow the left over water to pass through them. Some drains use a spring to control flow while others use a loose metal ball inside the device that moves out of the way to let water by.



Sprinkler warehouse carries all full selection of automatic drains at low prices!

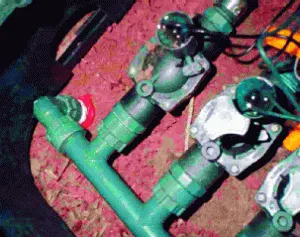

valve box with lateral drains

How to repair a backflow by installing a new “Bonnet & Poppet”


Cold weather is finally here and regardless of where you live there are certain things you need to know about your sprinkler system that will help you to avoid unwanted repairs or costly repair service calls.

If you have a sprinkler system, chances are that you also have a backflow preventer. A majority of backflow preventers are designed with a fail-safe in mind to prevent irreparable damage. The following guide will outlines the steps necessary to repair your own backflow preventer if freezing temperatures have damaged it.

1. Shut off the water supply to the backflow preventer.

Shut off of the bottom valve

  •  Turn the water supply off to the backflow by turning the lower handle (as shown)









inside_empty2. Remove all broken plastic parts from inside the device.

  • Unscrew plastic bonnet
  • Remove any broken pieces from the inside
  • There should not be any plastic pieces remaining inside the device
  • DO NOT mess with metal piece at bottom inside the device as it has a spring below it that would hurt you.



poppet-stack3.  Screw in new bonnet / poppet kit hand tight ONLY.

  • Place bell on top of metal screw and tighten small nut just enough to hold the metal bell on the device and still rotate by hand with some tension. DO NOT OVERTIGHTEN!
  • Cover device with a blanket if freezing temperatures persist











Sprinkler Warehouse carries two brands of kits. Click on the images below to learn more about each and purchase at a guaranteed low price.

poppet-1poppet-2















Skydrop now available at Sprinkler Warehouse with special introductory price


Sprinkler Warehouse is pleased to announce that they will be carrying the new Skydrop™ Smart Sprinkler Controller. The Skydrop controller combines groundbreaking modern styling with cutting edge technology. Skydrop, a Utah-based company, has designed the controller to meet and exceed the needs of today’s yards, while utilizing the technology that is becoming increasingly more commonplace across the board.


ControllerFinish

Sprinkler Warehouse is offering a special introductory price on the current stock of Skydrop controllers for $274 while supplies last.

Skydrop makes watering your yard more than just an exercise in scheduling. The controller is Wi-Fi enabled and uses the network connection to access hyper-local weather information to build a custom watering schedule.

Furthermore, the controller is able to adjust to meet any local watering restrictions keeping you out of trouble with the water police.

Lastly, Skydrop can be fully controlled remotely from any web enabled smartphone, tablet or smartphone.

skydrop-page-yourway-bkg

Controllers are now in-stock at www.sprinklerwarehouse.com and ready to ship same day on all orders placed before 4:45 p.m. CST.







Happy 4th of July from Sprinkler Warehouse!


At Sprinkler Warehouse, the 4th of July is one of our favorite holidays! Summer is in full swing, grass is green, trees are filled with leaves and flowers are blooming all around us.

It’s a great time of year for having a picnic or getting out of the house for a game of soccer, baseball, volleyball, frisbee, golf or any other activity that you can enjoy with friends and family together. It makes us proud to know that the green, lush carpet of grass that everyone enjoys all day long, from the parades in the morning, the afternoon picnics and the evening fireworks, is green and lush as a result of excellent watering!

So this Forth of July holiday, when you are out and enjoying the grass somewhere in your city, lawn or park, take a minute to look around and notice the sprinklers that make that grass so green and nice to enjoy!

4th-of-july-post

The picture above is of the sprinkler warehouse team members who dressed up (even the slightest) in celebration of the holiday.  There are five shirts in five different colors that correspond with a schedule. Blue shirts on Monday, grass-green shirts on Tuesday, navy blue on Wednesday, forest green on Thursday, and Royal Blue on Friday.

Since the 4th of July falls on a Friday this year, we will have the day off; so to celebrate the freedom holiday, we wore our Friday shirts on Thursday in place of the usual forest green colored shirts. We were also invited to accessorize our outfits with any red, white, or blue we had. The people in this photo are those employees, including yours truly, whom went the extra mile to add a touch or two of patriotism to their outfit.

So this 4th of July weekend, we hope that you have a fun, safe and exciting time with friends and family. Please be responsible with fireworks, alcohol and on the roadways.
